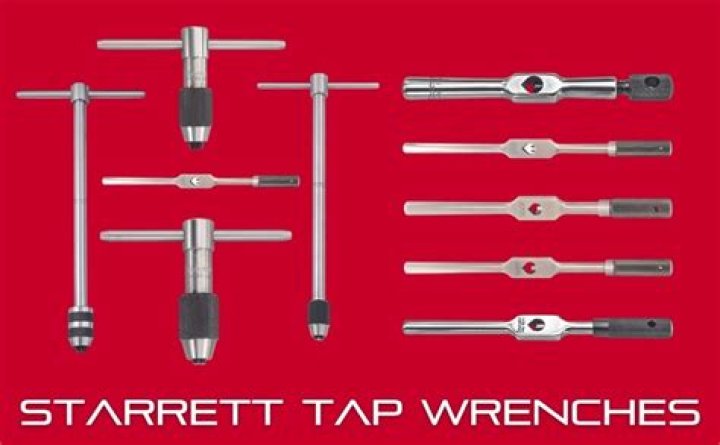

T HANDLE TAP WRENCH – STANDARD TYPE. • T handle tap wrenches , ideal for holding taps, reamers, screw extractors and other such small hand turned tools. • T-handle tap wrench allows you to turn taps to help make screw threads.
What is a T shaped tap handle?
Sliding T-handle tap wrenches are more compact than straight-handle tap wrenches and can be used for tapping holes in tight spaces. The handle on these wrenches slides from side to side to allow the wrenches to be turned in spaces where a standard straight handle or a fixed T-handle would not have room to turn.
Why is a T-handle tap wrench used with small taps?
T-handle tap wrench is used to hold small tools to be turned by hand, such as taps, drills, reamers, screw extractors. Hardened jaws, self-centered and knurled chuck sleeve can provide great hold and grip to tighten taps into the jaws. Tap wrench features a sliding handle.
What are T handles used for?
Sliding T Handles are used for driving of manually operated sockets. It has a large leverage handle which alloys application of force comfortably. Further final tightening can be done with both hands. The sliding T-Head is provided with a ball to arrest movement of handle at any desired position.Which tap wrench is suitable for large diameter of taps?
Double-end adjustable wrenches, also known as bar wrenches, have one threaded handle which is attached to one of the clamps. The clamp is opened to insert the tool and then tightened down against the tool to secure it. This type of tap wrench is used with larger taps and where there is room to turn a larger wrench.
What is a socket point?
(2) A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. … And (3), the edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener.
What size tap wrench do I need?
SizeThread SizesTotal Length0M1 – M8125 mm1M1 – M10180 mm1-1/2M1 – M12180 mm2M4 – M12280 mm
What is spud wrench?
Spud wrenches have a tapered spike at the handle end that’s used to align bolt holes when installing automotive components, beams, girders, or pipe fittings. The opposite end comes with a wrench to rotate fasteners for installation or removal.Can you use a ratchet with a tap?
The General Ratchet Tap Wrench is much handier to use with taps than the cross bar that comes with most tap and die sets.
What are the 3 types of taps?- There are 3 main types of taps to be familiar with Taper, Plug, and Bottoming tap.
- The taper tap can be identified by the visible and pronounced tapering of the cutting edges. …
- A plug tap has a less pronounced taper to the cutting edges.
What is a tap and what for it is used?
tap, a screwlike tool that has threads like a bolt and two, three, or four longitudinal flutes or grooves and that is used to cut screw threads in a nut or a hole.
Which type of tap can be used for tapping either a blind or an open hole?
Taper taps are the easiest taps to use by hand because the material removed is done with so many partial forms of the taps thread. Taper taps are normally used in through hole applications or as a starter tap for blind holes.
Which material the solid tap wrench is made?
High-speed steel is most commonly employed for these tools, and alloy carbide (coated alloy carbide is mainly applied) is also increasingly employed for its durability.
How do you calculate tap drill size?
As a rule of thumb, for Metric threads, the tapping drill can be calculated by subtracting the pitch from the diameter of the thread. eg for an M5x0. 75 thread the tapping drill is 5-0.75mm = 4.25mm. For Imperial (inch) threads the tapping drill size is calculated in the same way, diameter minus pitch.
Does Starrett make taps?
Starrett Sliding T-Handle Tap Wrenches These T-handle tap wrenches are made by Starrett. They are more compact than straight-handle tap wrenches and can be used for tapping holes in tight spaces.
How tall are beer tap handles?
Typical tap handles are 9-13″ tall, but can range from very short (4″) to novelty lengths (>13″). Most taps are assembled with a 4″ delrin handle. The threading for tap handles is 3/8″-16 UNC (coarse).
Are 6 pt or 12 point sockets better?
Therefore, 6 point sockets are the clear winner, and here’s why: Six-point sockets have thicker walls than 12 point sockets. Thus, 12 point sockets often come out of the fastener due to its thinner material. On the other hand, there’s no such problem with the 6 point sockets.
What are 8 point sockets used for?
What is an 8 point socket used for? Our range of 8 point sockets are perfect for use on our range of Pyramid Head Door Screws, Lag Bolts and Square Headed Machine Bolts. 8 point sockets take away the need for the use of a shifter and will stop you rounding off the head of a square bolt.
What are 12 point sockets good for?
- The additional points make these sockets easier to connect with the heads of fasteners.
- This is ideal if you are trying to work on a fastener that is hard to see or you cannot see at all.
- 12 point sockets are also great for use in tight spaces as they allow you to connect to a fastener at more angles.
What is a chain wrench?
Noun. 1. chain wrench – another name for chain tongs. chain tongs – a pipe wrench used for turning large pipes; an adjustable chain circles the pipe with its ends connected to the head whose teeth engage the pipe.
Why are construction wrenches pointy?
During assembly, the bolt holes don’t necessarily line up, so you stick the tapered tail through the mating holes in the construction item, lever them around till the adjacent holes line up, slap a bolt through, affix a nut and washer and then use the wrench end to tighten.
What is the difference between a pipe wrench and a spud wrench?
A pipe wrench is bigger and sturdier than a standardwrench,allowing it to turn pipes more efficiently. You’ll need a medium-size adjustable pipe wrench to tighten and loosen pipes and other plumbing connections. … A spud wrench is designed to remove these slip nuts.
Are taps only played at military funerals?
Taps has been used by the U.S. armed forces ever since — at the end of the day, during flag ceremonies and at military funerals. Whenever a service member is buried with military honors anywhere in the United States, the ceremony concludes with the three-rifle volley and the sounding of Taps on a trumpet or bugle.
What is tap How taps are classified?
Taps are classified by diameter, threads per unit measure, taper and hand (manual) or machine (automatic/power) held.
What is the difference between a plug tap and a bottom tap?
PLUG taps are like taper taps in that they have tapered threads at the starting end of the tap, the difference is there are fewer of them, usually the first 3-5 threads, so you get to cutting a full thread sooner. … Bottom taps can cut threads to the bottom of blind holes although they do not do well at starting threads.
What are the three tap chamfers?
The tap chamfer is the tapering of the threads that distributes the cutting action over several teeth. Usually, the type of hole to be tapped determines which chamfer type should be used. There are three common chamfer types: B, C, and E.
How do I identify a tap?
PITCH DIAMETER LIMIT SYMBOLS All standard ground thread taps are marked with the letter “G” to designate Ground Thread. The letter “G” will be followed by the letter “H” to designate above basic; or the letter “L” to designate below basic. The number following “H” or “L” signifies the number of .
What is the difference between a hand tap and a machine tap?
Hand Tap and Machine Tap are terms that don’t always mean what you think! … As machine tapping is a much faster operation than turning a tap by hand, chip evacuation became more difficult to control. Machine taps would become defined as those with flutes designed with geometry to direct the flow of chips out of the hole.
Which tap has the least amount of taper?
A bottoming tap has almost no taper at the end because it is designed to thread all the way to the bottom of its reach. Only 1 to 1.5 threads will be tapered. Bottoming Taps are useful for threading blind holes.
How do you use a tap and wrench set?
To use a tap, choose the size that is appropriate for the size of the bolt or the hole you want to thread. Place the tap into the special wrench and tighten it in. Then, place the cutting end of the tap over the hole and turn. Use cutting oil to lubricate the tap.
