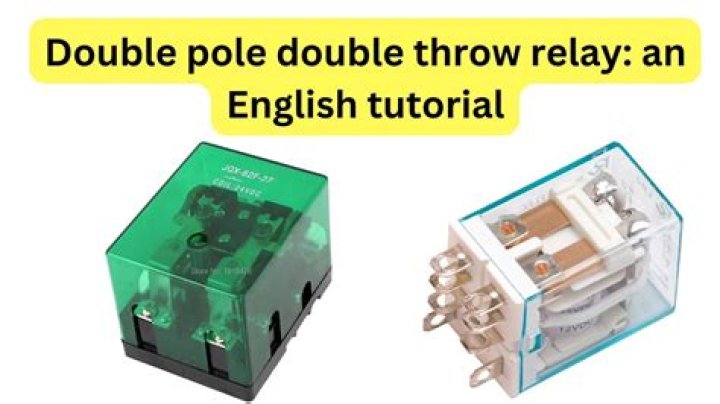

DPDT stands for double-pole double-throw relay which is an electromagnetic device used to separate two circuits electrically and connect them magnetically. They are often used to interface an electronic circuit, which works at a low voltage to an electrical circuit which works at a high voltage.

What does double throw mean on a relay?

“Throw” indicates the number of contact points. NO and NC contacts are single throw. Changeover contacts are double throw. If one switch can control one circuit for one operation, it is a single-pole switch. If it can control two or three circuits for one operation, it is a double-pole or a triple-pole switch.

What is the difference between a single and double pole relay?

A single pole will switch one wire by opening, closing, or changing the connection in a single conductor, while a double pole switch will control (by closing and opening) two separate wires or circuits at the same time. A throw, like a pole, can be single or double.

What does a double throw switch do?

A double-throw switch connects an input terminal to one of two output terminals. Thus, a double-pole switch has three terminals. One of the terminals is called the common terminal.

What is a double pole single throw relay?

The Double Pole Single Throw DPST relay is the equivalent of 2 SPST switches (NO Normally Open and NC Normaly Closed) and can be used to switch 2 different loads. We have 2 scenarios depending on the type of relay. without voltage on coil: with a NO the loads will be OFF because the current cannot flow.

What is single throw vs double throw?

A single throw means that a switch opens, closes, or completes a circuit at only one of the extreme positions while a double throw does the same thing as the single throw except that it completes a circuit at both positions of its actuator. Both SPDT and DPDT are both standard type of switches.

What is double throw?

Definition of double-throw switch : an electric switch having moving blades that may engage either of two different sets of fixed contacts.

What are the 4 types of switches?

  • SPST (Single Pole Single throw)
  • SPDT (single pole double throw)
  • DPST (double pole, single throw)
  • DPDT (double pole double throw)

How does a double pole double throw relay work?

DPDT stands for double-pole double-throw relay which is an electromagnetic device used to separate two circuits electrically and connect them magnetically. They are often used to interface an electronic circuit, which works at a low voltage to an electrical circuit which works at a high voltage.

What does 4 pole double throw mean?

A Double Pole Double Throw (DPDT) switch is a switch that has 2 inputs and 4 outputs; each input has 2 corresponding outputs that it can connect to. … This makes the the double pole double throw switch a very versatile switch.

Article first time published on

What advantage does a double throw relay have over a single throw relay?

Single Pole Double Throw Relay Being that it has 2 outputs, it is more dynamic than a single throw relay. It can connect to 2 different outputs, so it can switch a circuit in between any 1 or 2 states, such as ready mode-pause mode, etc.

How does a double throw breaker work?

Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.

What does double pole mean?

Double pole switches are connected to two separate electric circuits. … They essentially contain 2 switches which are linked together and can complete the circuit either simultaneously or staggered.

When should you use a relay?

One of the most common situations that require the use of a relay occurs when an application needs to switch from high to low current (or vice versa) within the same circuit. For example, the temperature sensors that power HVAC units require levels of amperage that vastly exceed the capacity of their wiring.

Is a double throw switch the same as a transfer switch?

I understand that most often safety switches are used to disconnect a load. But a double throw safety switch can be used as a manual transfer switch.

Why do we need a ULN2803 in driving a relay?

Why do we need a ULN2803 in driving a relay? Explanation: We need a ULN2803 for driving a relay because the relay coil requires 10mA or more current to be energized. If microcontroller pins are not able to provide sufficient current to drive relays then we need ULN2803 for driving relays.

What is the difference between SPST and SPDT relay?

SPST simply mean single pole, single throw. The product controls one circuit with one On position. SPDT means that it is a single pole double throw which means it has two ON positions. This can be a variety of circuitry however.

What is MCB electrical?

An MCB is an automatically operated electrical switch. Miniature circuit breakers are intended to prevent damage to an electrical circuit as a result of excess current. They are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.

What are the 3 types of switches?

The three types of mechanical switches are linear, tactile, and clicky.

What is 32A DP switch?

Lisha has developed a compact double pole switch to withstand 32Amperes of load, called the 32A Mini DP. … Switch is used for appliances like Air Condition, Water Heater, Water Geyser, and Water Pumps.

How a relay works 12v?

Relays install between the power source and the electrical accessory requiring on/off power. When the relay is energized, the high current to operate the accessory flows from the power source, through the relay, and directly to the part.

Why is a relay used in a circuit?

Relays control one electrical circuit by opening and closing contacts in another circuit. … Relays are generally used to switch smaller currents in a control circuit and do not usually control power consuming devices except for small motors and Solenoids that draw low amps.

Why are two breakers connected?

Inside your breaker box or main service panel are energized metal plates, called “hot” bus bars. Each pole, or connection point, on the bars, carries 120 volts of electricity. … This causes the other half of the breaker to trip at the same time because the two halves are tied together by the single breaker bar or toggle.

Can I replace a double pole breaker with two single pole breakers?

Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You’ll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can’t be used for a multiwire circuit.

Does 240 volt need a neutral?

Any 120V or 120/240V equipment must be supplied with a neutral conductor. In a 240V-only circuit, there is no neutral, and the ground can be either insulated or uninsulated.

When would you use a double pole switch?

A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

Can I replace a double pole socket with a single pole?

Not necessary for socket outlets even on TT systems bajb, that regulation applies to isolation of the whole installation, ie main switch. over from double pole to single pole switching can overcome the problem, where such replacement is permissible and safe.
