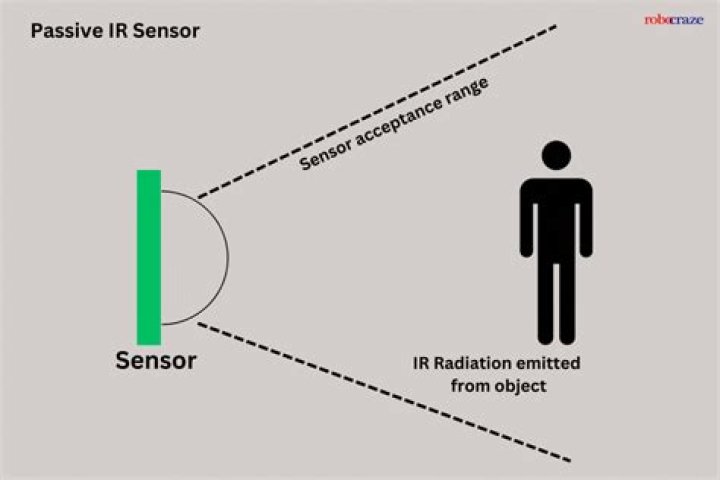

A passive infrared (PIR) sensor measures infrared light emitted from objects that generate heat, and therefore infrared radiation, in its field of view. Crystalline material at the center of a rectangle on the face of the sensor detects the infrared radiation.

Can PIR sensor detect objects?

Passive infrared (PIR) sensors detect infrared energy radiating from objects within their field of vision. … The most common object a PIR sensor detects is the human body, so these sensors find use in automatic light switches, alarm systems, and door openers.

How does PIR sensor detect human?

The Passive Infrared (PIR) sensor is used to detect the presence of human. … The Grid-EYE sensor detects the human using the infrared radiation radiated by the human body. Every human radiates the infrared energy of specific wavelength range. The absorbed incident radiation changes the temperature of a material.

What triggers a PIR sensor?

The first cause of PIR false alarms is low or unstable voltage at the detector. Test to make sure the voltage at each PIR is above 13VDC and stable. The second cause of false alarms is sudden infrared movement / heat changes in view of the detector. … This causes air convection inside the PIR.

Can PIR sensor detect non living things?

No, the PIR can’t detect living things that don’t move. The design of the device is such that only fairly rapid changes in temperature of an object compared with background temperature will raise an alarm.

Can PIR sensor detect animals?

PIR sensor is used to detect animals in the form of cow, goats, monkeys and civets with a voltage output of 3.3 V up to a maximum distance of 5 m.

What is the difference between PIR and IR sensor?

The IR sensors detect whether the light from the transmitter is emitted by an object or a person. Whereas, the PIR sensors detect changes in the levels of energy around the area. … PIR sensors don’t actually emit the infrared; objects give the sensor infrared rays.

Does PIR work through plastic?

PIRs do work thru plastic, they generally do not work thru glass.

Do trees set off PIR sensors?

PIRs are sensitive to waving branches of trees, especially if there is a light/heat source on the far side (eg street light). They also seem to be triggered by gusts of winds blowing around leaves.

What sensor can detect location?

Proximity sensors as well can detect that an object has come within range of the sensor. Both sensors, therefore, might be considered as a specialized form of position sensors. More about these sensors may be found in our related guides about proximity sensors and about motion light sensors.

Article first time published on

What can set off a motion detector?

What can set off a motion detector? Moveable objects such as balloons, curtains, decorations, and pets can set off motion detectors. How to prevent this: Consider positioning motion sensors above waist level so pets can move around freely, and away from curtains and other items that may move or drift.

How does a PIR motion sensor detect motion?

A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. … They work entirely by detecting infrared radiation (radiant heat) emitted by or reflected from objects.

Where do we use PIR Sensor?

PIR sensors are used in thermal sensing applications, such as security and motion detection. They are commonly used in security alarms, motion detection alarms, and automatic lighting applications.

How do you jam a motion sensor?

  1. Learn how the motion detector works. …
  2. Trip the motion detector on purpose until the homeowner switches it off. …
  3. Reduce the amount of heat you’re giving off. …
  4. Introduce a masking sound. …
  5. Figure out the paths of the detectors. …
  6. Move very slowly.

Is PIR Sensor active or passive?

Ultrasonic, microwave, and infrared motion sensors are active sensors, which means they actively send energy. A passive sensor can be thought of as a “read-only” device. An example is a passive infrared (PIR) sensor, which detects infrared energy created by body heat.

What is better PIR or microwave sensor?

Both sensor types have their own advantages and are better for different spaces and tasks. Lights that feature PIR sensors are generally best for use as security lights. … Microwave sensors are also much more sensitive, which makes them suitable for times when you need to detect very fine movement.

Does PIR Sensor work in sunlight?

1. Keep PIR sensors 10–15 feet away from heat sources like radiators, heating vents, and sunny windows. Motion sensors can trip upon detecting a swift change in heat, even that of a cloud passing quickly over direct sunlight in your living room.

Does PIR detect birds?

This research has developed and designed prototype detector and repellent of birds. … The results of the experiment are the PIR sensor working with a detection distance between 0 cm-500 cm, and the bird will be disturbed at a frequency signal of about 60 kHz.

How do pet friendly PIR sensors work?

How do pet friendly PIRs work? A passive infra-red (PIR) detector is designed to detect movement of body heat (passive infra-red energy). … However the moment a person enters the room the passive infra-red emitted from a human is seen as a big change in the environment and the detector triggers the alarm.

Will a cat set off a motion detector?

No, cats will not set off motion detectors, provided that the motion detectors in question offer pet-immunity and they are installed correctly. But if a motion detector is installed in a poor location, or if it does not have pet-immunity, then it’s likely a cat will set the device off.

Can wind set off a motion sensor?

In normal conditions, wind alone can’t set off the motion detector. Air doesn’t have an infrared heat signature, so the PIR won’t capture any movement with the wind blowing past. And basic movement sensors are based on light, so don’t see the invisible air particles’ movement.

Does wind affect motion lights?

Strong winds or falling rain might move plants and porch decorations around, setting off your lights. The chances of this happening is relatively rare, and you can always adjust the sensitivity of your motion sensor so that it doesn’t go off for movements small enough to be caused by inclement weather.

Can trees trigger PIR?

In difficult environments, strong wind blowing leaves on trees or similar objects can trigger the motion sensor. This is because heat from the day may be trapped within the leaves of trees or other objects.

Which sensor is best for object detection?

Photoelectric sensors have faster response speeds, longer sensing ranges, and higher levels of precision than ultrasonic sensors. LED-based sensors are very effective for general use detecting larger object and largers gaps between objects (compared to laser-based sensors).

What sensors are used for tracking?

  • Criteria to choose the right sensor. …
  • Light sensor. …
  • Color sensor. …
  • Touch sensor. …
  • Ultrasonic sensor. …
  • Infrared sensor. …
  • Sonar sensor. …
  • Laser sensor.

Can a flashlight set off a motion detector?

As I briefly mentioned before, lights and light bulbs will only impact one type of Motion detector and potentially set off a false alarm. These motion sensors look for changes in Infrared Radiation to decide whether or not there is motion. Infrared Radiation is also known as heat.

Can a laser pointer set off a motion sensor?

You could conceivably direct a low power IR laser at the motion sensors opening BEFORE the system is armed, and then leave it place. When armed, the sensor would not be able to detect low power changes in IR radiation (i.e. a person moving across the room) above the higher powered IR light of the laser directed at it.

What is PIR motion sensor module?

The PIR Motion sensor module is an automatic control module based on infrared technology. It adopts LHI788 probe, which has high sensitivity, high reliability, low voltage working mode and low power consumption. It can be widely used in various types of automatic induction electrical equipment.

How do you block a PIR sensor?

Block the sensors with a piece of paper or cardboard. This will not work for all motion sensors, but it can be attempted in cases where there may not be very much room free from their line of sight. Place the paper or cardboard in front of the sensors very slowly, then attach it to the unit before proceeding.

How do I disable PIR?

How to disable the PIR sensor in my office – Quora. Cover the PIR sensor by taping a piece of foil over it. That way the lights will come on when you operate the switch, and when you switch off, the sensor will never detect a person in the room and so never turn them on.
